ASTM A312 TP 316L

ASTM A312 TP 316L

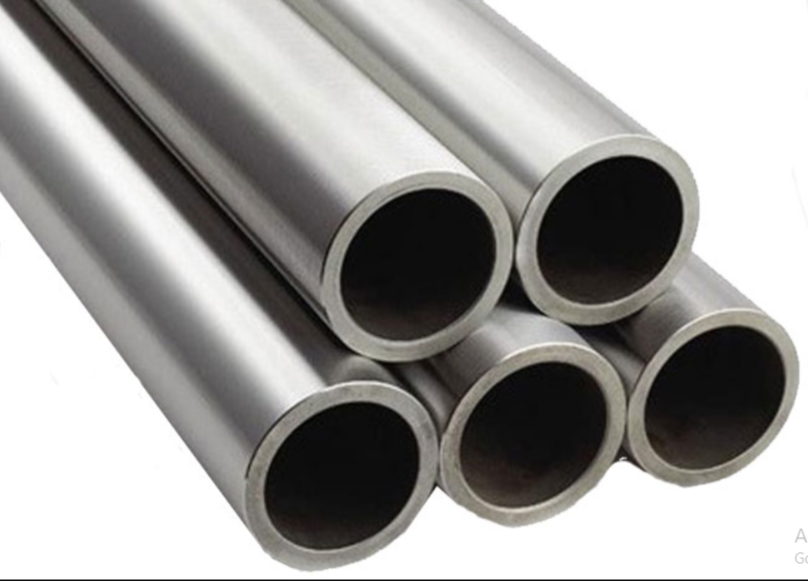

ASTM A312 TP 316L Stainless Steel Mechanical Polish Pipes are high-performance austenitic stainless steel pipes manufactured with precision mechanical polishing to achieve a smooth, uniform, and mirror-like surface finish. Produced in accordance with ASTM A312 / ASME SA312 standards, these pipes are designed for applications requiring superior corrosion resistance, enhanced hygiene, and excellent surface aesthetics.

Grade TP 316L is the low-carbon version of 316 stainless steel, offering improved weldability and minimizing the risk of carbide precipitation during welding. The addition of molybdenum provides outstanding resistance to pitting and crevice corrosion, particularly in chloride-rich and marine environments. The mechanical polishing process further improves surface smoothness, making these pipes ideal for sanitary, pharmaceutical, chemical, marine, and architectural applications.

Specifications

Standard	ASTM A312 / ASME SA312
Grade	TP 316L
Manufacturing Process	Welded / ERW
Size Range	1/2" NB to 24" NB
Wall Thickness	Schedule 5S to Schedule 80S
Length	6 Meters Standard / Custom Cut Length
Surface Finish	Mechanical Polish (180 Grit, 240 Grit, 320 Grit, 400 Grit)
End Type	Plain End, Beveled End, Threaded

Key Features & Benefits

• Low Carbon Content: Reduces risk of intergranular corrosion after welding.
• Superior Corrosion Resistance: Excellent resistance to chlorides, chemicals, and marine environments.
• Molybdenum Enhanced: Improved protection against pitting and crevice corrosion.
• High-Quality Polished Finish: Smooth, uniform surface ideal for hygienic and decorative use.
• Excellent Weldability & Fabrication: Suitable for complex fabrication requirements.
• Long Service Life: Durable performance with minimal maintenance.

Chemical Composition (Typical)

Element	Composition (%)
Carbon (C)	0.03 Max
Chromium (Cr)	16.0 – 18.0
Nickel (Ni)	10.0 – 14.0
Molybdenum (Mo)	2.0 – 3.0
Manganese (Mn)	2.00 Max
Silicon (Si)	1.00 Max

Applications

• Chemical & Petrochemical Processing Plants
• Marine & Offshore Installations
• Pharmaceutical & Biotechnology Industries
• Food & Beverage Processing Equipment
• Heat Exchangers & Condensers
• Architectural & Decorative Structures

Testing & Inspection

• Hydrostatic Testing
• Ultrasonic Testing (UT)
• Eddy Current Testing
• Positive Material Identification (PMI)
• Dimensional & Visual Inspection

Conclusion

ASTM A312 TP 316L Stainless Steel Mechanical Polish Pipes offer excellent corrosion resistance, superior weldability, and an enhanced polished finish. With outstanding resistance to harsh environments and hygienic properties, these pipes are widely preferred for marine, chemical, pharmaceutical, sanitary, and architectural applications.
